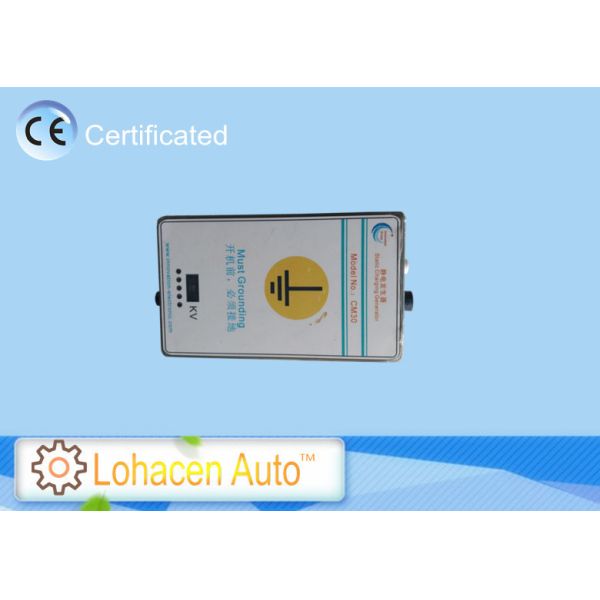

CM20/30-20KV High Voltage static charging Generator For Static Ink IML lable 5mA*150W

  • 1
  • 2

Brand Name : inntronic

Model Number : CM20，CM30

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Delivery Time : 15-25 days

name : CM20 and CM30 static generator

Input voltage : 100V～240VAC

output voltage : 0-20kv Stepless adjustable

ambient temperature : -15℃～50℃

Main engine size : 244*124*64mm

Main engine weight : Main engine weight

Contact Now

0-20KV (Simco CM20 and CM30) static Charging genrator for static ink of gravure press


CM serial static generator can produce controllable static voltage that make a insulating material stick to another insulating material or metal temporarily. This static generator is consist of static launcher (bar) and DC high voltage power supply. The DC high voltage power supply provide ion launcher - (or +) high voltage that launch minus(or positive) ion, then charge an object with electricity(Artificial charging). The higher the voltage, the greater the effective range.

Industry application:
IML(In-Mold Labeling)/ Automatic film change/ Cast seam/ Electrostatic pile paper/ Electrostatic recombination/ Edge banding of heat shrinkable packaging machine/ ake-up and exhaust of bag-making machine/ static insert card/ static cooling of Rotary press/ static ink of gravure press/ static laid paper of overlaying production line/ static film (paper) pasting for shearing machine/ static adsorption location of glass sheet；

Advantage:

feature benefit
Small measurement and weight easy to install and use, save space
High frequency variable pressure package Suitable for fast breaking high voltage output occasions
Output voltage 0-20KV Stepless adjustable；Output voltage 0-30KV Stepless adjustable Don’t need to optimize the service performance according to the application. Can realize the optimal static absorption effect without overload, and suitable for all IML equipment.
internal overload protection Postpone the lifespan of equipment
Signal cable control Can remote control the output of high voltage by relay
easy to integrated with PLC
24V DC input Suitable for most automatic machine.

Can replace Meech IML994L; FRASER E73150N-AC, E73150P-AC!!!

Specifications

Input voltage 100V～240VAC
(main engine 24VDC is provided by adaptor)		 100V～240VAC
(Main engine 24VDC is provided by adaptor)
Max. Power input 75W 75W
output voltage 0-20kv Stepless adjustable 0-30kv Stepless adjustable
Max output current 5mA 5mA
max power output 100W 150W
Output polarity - minus / + positive - minus / + positive
ambient temperature -15℃～50℃ -15℃～50℃
Output stability 1％ when applied max load 1％when applied max load
Output hole 1 way output or 2 way output 1 way output or 2 way output

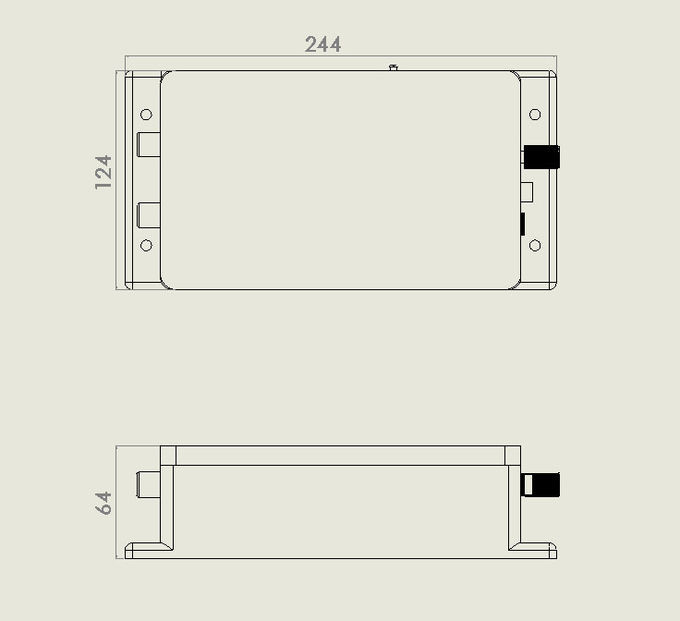

Main engine size 244*124*64mm 244*124*64mm
Main engine weight 2kg 2kg
Installation and fixation M4 Metal screw M4 Metal screw
